The ROTEK INSPECTION SYSTEMS are full set of equipment’s and fixtures required to inspect a Tableting Punch or Die which includes Manual Inspection & Semi Automatic Inspection. The Manual Inspection System complies of equipment’s that only display the readouts and do not save or bifurcate based on the Data & Tolerances. The Semi Automatic System complies of equipment’s that are directly connected to a system that not only reads out dimensions but also saves and bifurcated based on the tolerances set.

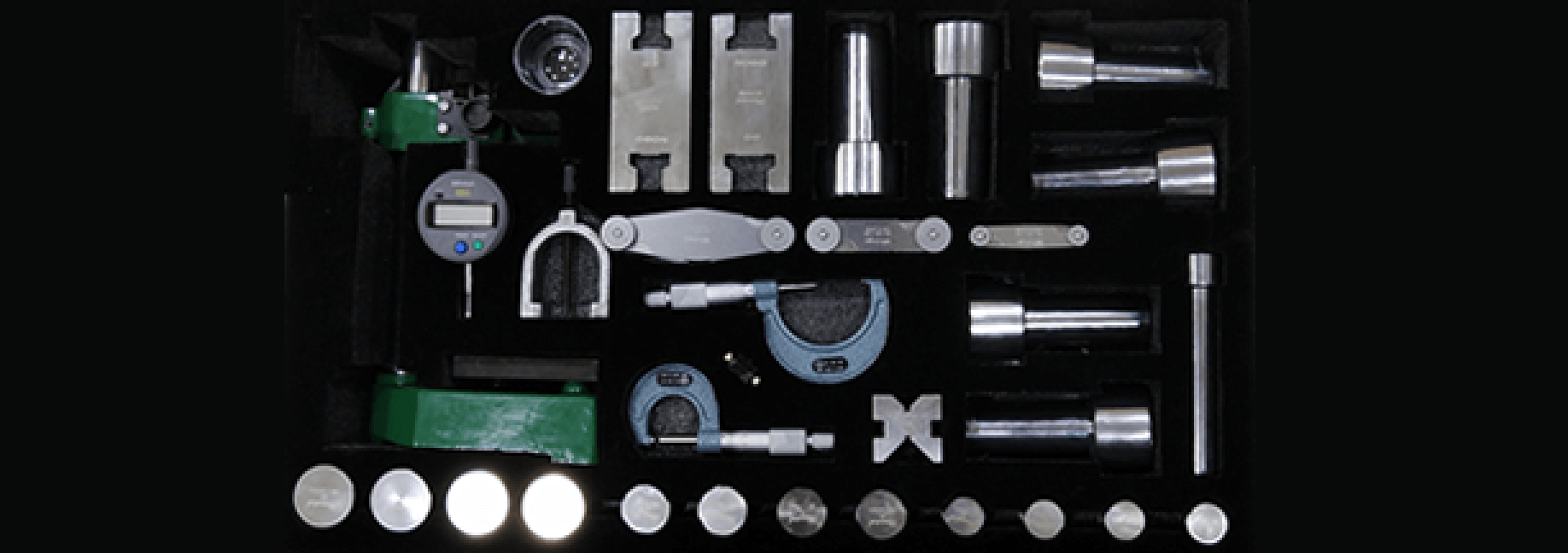

Manual Inspection System & Details.
1) Sturdy Carry Case with Foam Inlets.
2) Dial Stand.
3) Digital Dial (0.00 to 10.00 mm).
4) Puppet Dial (0.00 to 1.00 mm).
5) Micrometer 0.00 to 25.00 mm (Analogue or Digital).
6) Micrometer 25.00 to 50.00 mm (Analogue or Digital).
7) Radius Gauge 0.10 to 7.00 mm.
8) Radius Gauge 7.50 to 15.00 mm.
9) Radius Gauge 15.50 to 25.00 mm.
10) V Block with C clamp.
11) Punch Standard Overall Length Gauge (EU or TSM).
12) Punch Head Go – NoGo gauge ‘ B ‘ Type (EU or TSM).
13) Punch Head Go – NoGo gauge ‘ D ‘ Type (EU or TSM).
14) Magnifying Glass (5x Zoom or 10X Zoom or 20X Zoom).
15) Punch Holder ‘ B ‘ Type universal.
16) Punch Holder ‘ D ‘ type universal.
17) Incremental Dies ‘ BB ‘ , ‘ B ‘ & ‘ D ‘ (Range 0.00 to +0.04 mm).
Many Options above this which could be opted for as per requirments.
Semi Automatic Inspection System & Details.
1) Punch Fixture ‘ B ‘ Type adjustable for EU & TSM standard (Tip O.D. , Barrel, Neck & Over all Length).
2) Punch Fixture ‘ D ‘ Type adjustable for EU & TSM standard (Tip O.D. , Barrel, Neck & Over all Length).
3) Punch Work Length Stand and Gauging Instrument.
4) Die O.D. , I.D. & Height Fixture and Gauging Instrument.
